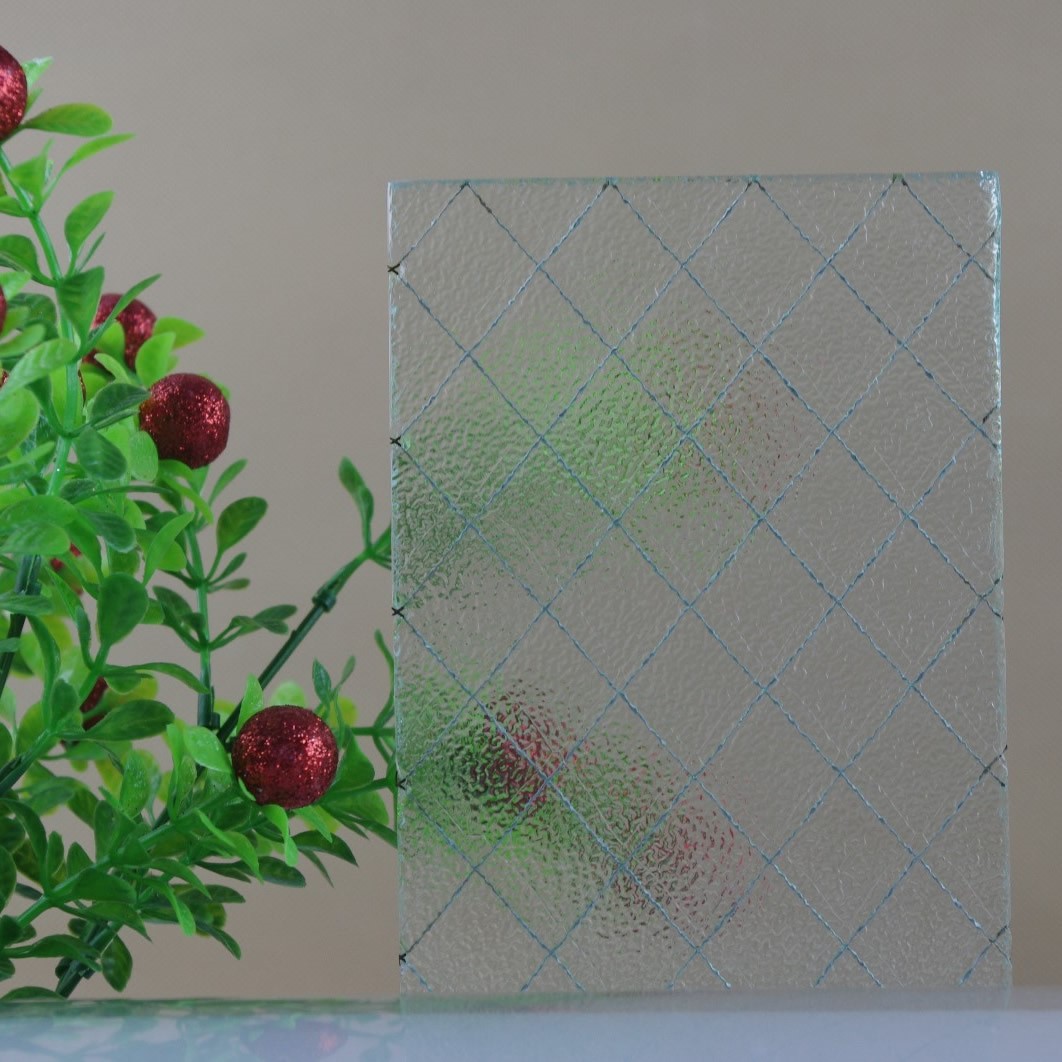

Wired patterned glass is a kind of reinforced
concrete-structured safe and decorative patterned glass
with wired mesh embedded in the glass by a special mesh
unwinding system.

A steel wire mesh is sandwiched between two separate ribbons
of semi-molten glass, and then passes through a pair of metal
rollers which squeeze the “sandwich” of glass and wire together.

Wired patterned glass has an impact resistance similar to normal glass,
but in case of breakage, the mesh retains the pieces of the glass.
This product is traditional used as low-cost fire glass.


1)Fireproof safety: even wired glass breaks in the fire,
the fragments will still connect with each other by the wire meshes,
and not fall down, which prevent fire spreading.
2)Shock resistant safety
3)Translucent decoration


Wired patterned glass is widely applicable to those public and
private places that comprehensively require fire-proof, violence-resistant,
shock resistant, sunlight passing but clear view preventing and decorating.

Thickness:6mm, 6.5mm , 7mm

Size:1830x2440mm, 2540x1982mm  2540x1905mm
2530x1530mm 2440x2000mm

Categories:Nashiji,Flora,May Flower,Mistlite,Aqualite,Diamond,Karatachi,Moru,Moran,Ripple,Millenium,Masterlite,Kasumi,Crystal,Bamboo,Morgon,Chillin,Chinchilla,Hishicross,Silver Square,etc


1. Fireproof safety: wired glass is suitable to be used as an efficient fireproof material. Even wired glass is broken in the fire, the fragments will still connect with each other by the wire meshes, and will not fall down, which prevent fire spreading.
2.Shock resistant safety: Even wired glass broken in shocking, the fragments will still be connected by the wire meshes and won't fall down.

Application:Door, window, louver, Partitions etc.
Delivery:Two weeks after order confirmation
